Parts list and instructions to add 2016+ center console into 2012-2016 MS

Zuikkis

Member
Aug 19, 2020
263
307
Finland

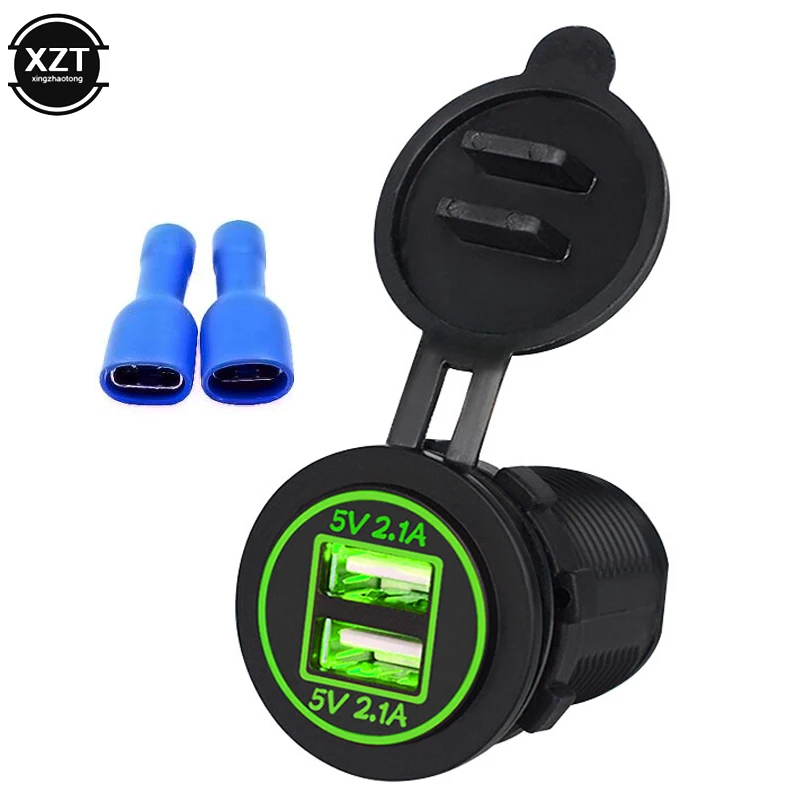

To power the rear USB's, you can buy something like these:



Then just split +12V from the cigarette lighter wires.


Zuikkis

Member
Aug 19, 2020
263
307
Finland
Finally got my Obeche Gloss sliding door from Tesla. Looks great. Tesla had no stock in Europe, so they ordered it overseas..

They had to do special tricks to sell it. It's listed as MX part, so they are not allowed to sell it for MS VIN...

Color is exact match, and even the striping has correct orientation. I was a bit worried that 2013 MS "Obeche Gloss" might not be the same thing as 2020 MX "Obeche Gloss".



  • Like
Reactions: AaronP85 and jgatl
Oct 10, 2019
440
220
So-Cal
Old thread but I'm doing this refit and have an issue.
I got 99% of the parts in just waiting for 1057331-00-E - CENTER CONSOLE BRACKET to come in at my local SC.
But I got the whole thing apart and was looking around to make sure I have everything and it'll be good. Well I have 2 USB cables that go to the MCU, but I don't have any way to tie in the rear lighted USB to the rest of the system. It looks like there should be a splitter hub or something but I can't find a part number anywhere for it.

Also, I bought 106454-00-A ASY, CONSOLE BACK PANEL, CUP HOLDER but it doesn't have any holes for the rear USB. Is there a different part number that has the USB holes? By looking at the USB cables they look like they should snap into place.


Zuikkis

Member
Aug 19, 2020
263
307
Finland
There are lots of part numbers in the first post, including:
1064504-00-A - ASY, CONSOLE BACK PANEL, CUP HOLDER -

I assume that is the one with USB holes.

See my message above for one solution for powering the usb:s. Basically just steal 12V and ground from the cigarette lighter, and use some USB car charger to convert it to USB's +5V.

There is a Tesla part for that, but it is not a direct fit ether because of wiring harness differences.

Btw, I have nearly all parts required for the rear USB and cup holders, I could sell them if anyone is interested. They are in Finland though but international shipping should be possible. I bought these first, then found the full console in eBay which contained all the parts I had already bought..


jgatl

Member
Mar 6, 2019
40
30
30306
All that time writing it up and I made a mistake. I originally put 1080669-00-A as the cables, but the embedded charger is 1047537-00-C. It's referred to as a "Dual Port Charger". Search eBay for 1080669 and you'll see what you are trying to find. IIRC, this was about $90 at the TSC.

For the ports, the vent and the USBs are one piece, PN 1064501 (depicted from EPC as 19) and the cup holder cover is another piece, 1086690 (depicted as 26). Hope this helps you!

Also, if I had to do it again, I'd do what @Zuikkis did. This gives you a +5V/fast charging port.


Oct 10, 2019
440
220
So-Cal
There are lots of part numbers in the first post, including:
1064504-00-A - ASY, CONSOLE BACK PANEL, CUP HOLDER -

I assume that is the one with USB holes.

See my message above for one solution for powering the usb:s. Basically just steal 12V and ground from the cigarette lighter, and use some USB car charger to convert it to USB's +5V.

There is a Tesla part for that, but it is not a direct fit ether because of wiring harness differences.

Btw, I have nearly all parts required for the rear USB and cup holders, I could sell them if anyone is interested. They are in Finland though but international shipping should be possible. I bought these first, then found the full console in eBay which contained all the parts I had already bought..

All that time writing it up and I made a mistake. I originally put 1080669-00-A as the cables, but the embedded charger is 1047537-00-C. It's referred to as a "Dual Port Charger". Search eBay for 1080669 and you'll see what you are trying to find. IIRC, this was about $90 at the TSC.

For the ports, the vent and the USBs are one piece, PN 1064501 (depicted from EPC as 19) and the cup holder cover is another piece, 1086690 (depicted as 26). Hope this helps you!

Also, if I had to do it again, I'd do what @Zuikkis did. This gives you a +5V/fast charging port.
So i thought i had all the parts i needed already but 1064501-00-B has not come in yet which is why i was confused on the USB holes so whenever it comes in I'll be good.

For the USB i like how simple just running a 5v and ground is but it would be nice to be able to plug a controller into the back so maybe I'll get a USB splitter for a computer and toss it in there.


Zuikkis

Member
Aug 19, 2020
263
307
Finland
For the USB i like how simple just running a 5v and ground is but it would be nice to be able to plug a controller into the back so maybe I'll get a USB splitter for a computer and toss it in there.

Even with the real Tesla part they are charge only.

However recent Model X (maybe 2019 onwards) comes with a powered USB hub there. It connects to one of the USB's coming from the MCU, and then divides that to all four ports (two front, two back). I'm not sure if the old USB cable from the MCU is long enough to reach the place where this hub is supposed to be mounted, so maybe need an extender cable or something..

Oct 10, 2019
440
220
So-Cal
Finally got the rest of my parts in so I can put this crap together.
I was mid install following the directions and I went to clip on the cup holder trim panel which the directions say

18. Install the rear cup holder trim panel (Figure 17). Ensure that all clips are fully secure

Well that piece doesn't have clips it has holes for screws 🤦‍♂️😂😂
But nowhere on EPC does it mention screws or show a pic of screws.
So now I'm about to dig around my old bucket of crap and try to find 5 small screws and see larg'ish washers but then I still gotta assess how to actually attach it because there is limited space to get in there.


Oct 10, 2019
440
220
So-Cal
Finally got the rest of my parts in so I can put this crap together.
I was mid install following the directions and I went to clip on the cup holder trim panel which the directions say

18. Install the rear cup holder trim panel (Figure 17). Ensure that all clips are fully secure

Well that piece doesn't have clips it has holes for screws 🤦‍♂️😂😂
But nowhere on EPC does it mention screws or show a pic of screws.
So now I'm about to dig around my old bucket of crap and try to find 5 small screws and see larg'ish washers but then I still gotta assess how to actually attach it because there is limited space to get in there.
Ok I'm a dumbass but in my defense it's not very intuitive.
For future people who notice this problem in the future it goes in and after a lot of force like feels like it's gonna break force push in and down at the same time and it clicks into place. 🤦‍♂️🤦‍♂️
