Supercharger - Santa Rosa, CA (LIVE 20 Nov 2019, 20 V3 stalls)

Discussion in 'California Supercharger locations' started by mociaf9, Jul 11, 2019.

  1. mociaf9

    mociaf9 Active Member

    Joined:
    Oct 18, 2018
    Messages:
    2,388
    Location:
    CA
    #1 mociaf9, Jul 11, 2019
    Last edited: Jul 11, 2019
    @channing saw and reported a sign at the Corte Madera superchargers saying that there were 20 stall superchargers coming soon to Novato and Santa Rosa. Based on that I was able to find a Santa Rosa building permit for one on Santa Rosa's online permitting portal--Record B19-1548. They are going in at the Coddingtown Mall. Interestingly, alongside the superchargers Tesla is also going to install a storage system with 4 PowerPack batteries.

    Address: 380 Coddingtown Ctr, Santa Rosa, CA 95401
    GPS: no information on exact siting within the property

    Santa Rosa.JPG

    @BlueShift @Chuq

    • Like x 4
  2. AMPd

    AMPd Active Member

    Joined:
    Nov 27, 2012
    Messages:
    4,245
    Location:
    Northern California
    Awesome!

  3. emupilot

    emupilot Active Member

    Joined:
    May 23, 2013
    Messages:
    1,439
    Location:
    Northern California
    Great job, mociaf9! I gave up on checking the Santa Rosa permitting system when they put in the Rohnert Park supercharger. I am going to avoid mentioning a certain letter and number (one should be sure before claiming a unicorn sighting), but between the 4 PowerPacks and one switchgear for 20 pedestals, this does not sound like the kind of set up we are used to.

    • Like x 1
  4. Speight

    Speight Member

    Joined:
    Jan 20, 2016
    Messages:
    100
    Location:
    SF Bay Area, CA
    I'd guess a typo of "1" for "10" is more likely? I doubt any supercharger would be be able to support 20 stalls with a single switchgear unit. (The revision-that-won't-be-named would need 5 for 20 stalls IIRC.)

  5. ItsNotAboutTheMoney

    ItsNotAboutTheMoney Well-Known Member

    Joined:
    Jul 12, 2012
    Messages:
    10,212
    Location:
    Maine
    Hmm. That's some pretty heavy density Tesla's putting there.

  6. ecarfan

    ecarfan Well-Known Member

    Joined:
    Sep 21, 2013
    Messages:
    19,181
    Location:
    San Mateo, CA
    Probably because Teslas ownership data shows there are increasing numbers of cars in the area. Also, locations may be easier to come by than they are on the SF Peninsula.

    • Like x 3
  7. miimura

    miimura Well-Known Member

    Joined:
    Aug 21, 2013
    Messages:
    5,971
    Location:
    Los Altos, CA
    The switchgear is just the big breaker box that distributes the power from the utility transformer to the individual Supercharger cabinets. 10 Supercharger cabinets for 20 stalls can easily be supported by one switchgear box.

  8. Speight

    Speight Member

    Joined:
    Jan 20, 2016
    Messages:
    100
    Location:
    SF Bay Area, CA
    Ah, I stand corrected. But in that case, it sounds no different from a typical install with storage. Curious that the supercharger cabinets aren't explicitly mentioned in the list of things to install.

  9. mleras

    mleras New Member

    Joined:
    Jul 11, 2019
    Messages:
    4
    Location:
    Santa Rosa
    Last time I was at the site in Coddingtown July 1:

    8BB5F5E5-B269-40F0-B27E-A1DD9A371008.jpeg 2CEA7736-FBE6-4D26-BF56-C8E68F57486B.jpeg 3970ACF5-F1BE-4400-B632-0B945042D392.jpeg


    Attached Files:

    • Like x 7
  10. Blu Zap

    Blu Zap Grinning member

    Joined:
    Oct 1, 2014
    Messages:
    1,085
    Location:
    San Rafael, CA.
    North bay has been severely lacking in SuCs compared to the Peninsula, South Bay and Tri-Valley. The density in those areas is very extreme. Glad to see there is acknowledgement of the NorthBay Tesla owners.

    • Like x 2
  11. jkingsle

    jkingsle Member

    Joined:
    Jul 6, 2018
    Messages:
    30
    Location:
    San Mateo, CA
    Wow. Lots of options in the area now. Rohnert Park, Windsor (planned) and now this.

    • Like x 2
  12. gvlopez

    gvlopez New Member

    Joined:
    Feb 19, 2019
    Messages:
    1
    Location:
    Santa Rosa
    Wow for a while there I figured the Santa Rosa SC was abandoned for Windsor's but I'm excited to see progress.

  13. Benjamin Brooks

    Joined:
    Jan 21, 2013
    Messages:
    589
    Location:
    San Jose, California, United States
    Finally... I've waited 7 years for this one :D

    • Like x 1
  14. MarcoRP

    MarcoRP @MontrealTesla

    Joined:
    Sep 6, 2017
    Messages:
    4,846
    Location:
    Montréal
    • Helpful x 1
    • Like x 1
  15. miimura

    miimura Well-Known Member

    Joined:
    Aug 21, 2013
    Messages:
    5,971
    Location:
    Los Altos, CA
    #15 miimura, Jul 12, 2019
    Last edited: Jul 12, 2019
    No. They have not installed any of the charger hardware. The Supercharger cabinets and pedestals are all missing from the installation. That is all the Powerpack system and switchgear that was installed first. The pictures show 4 Powerpack battery cabinets and one Powerpack inverter cabinet in front with the switchgear behind them. It looks like they will have 5 pairs of Supercharger cabinets arranged in an backwards L shape next to the Powerpack Inverter.

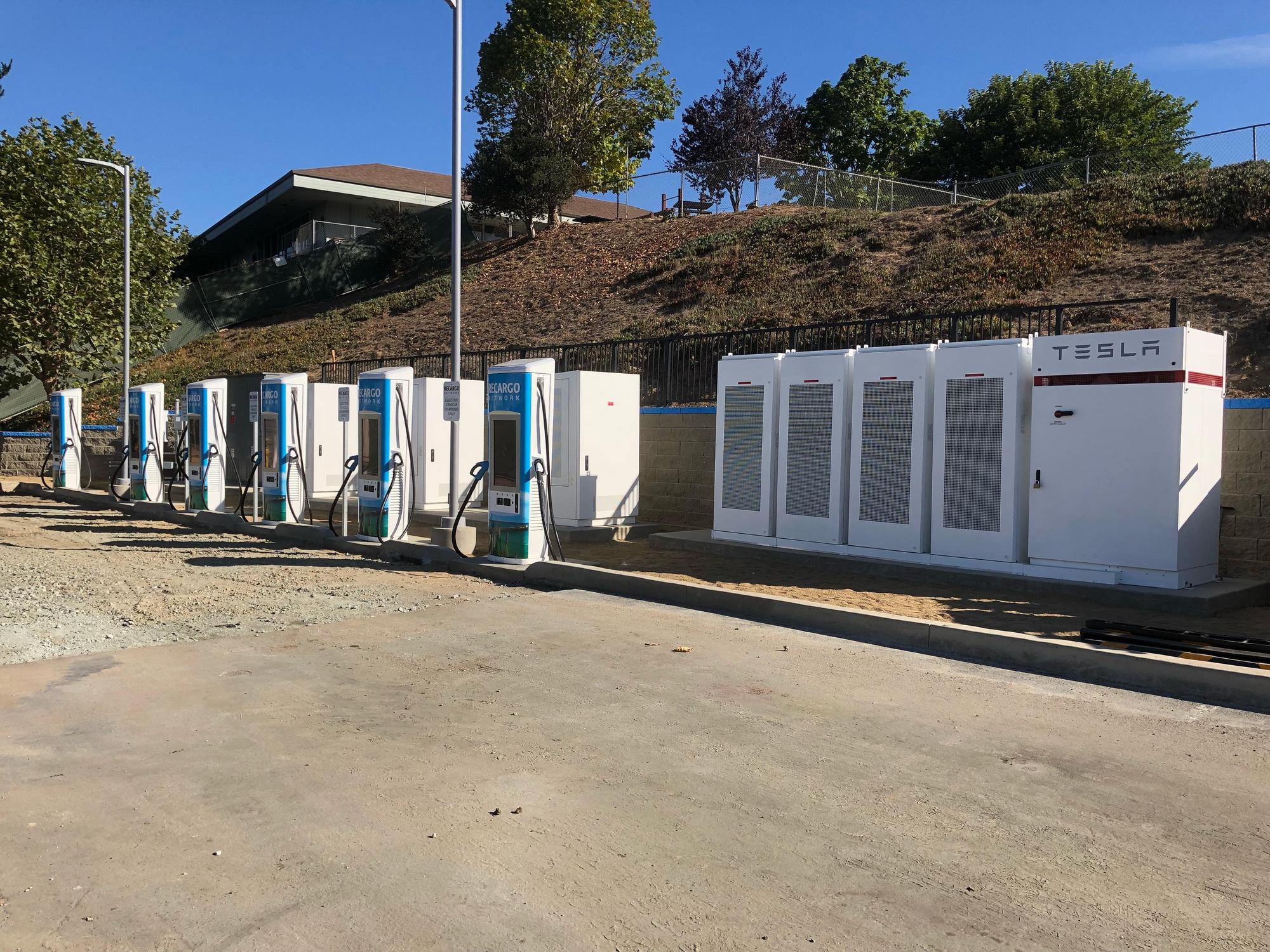

    For reference, this is a similar Powerpack system installation by Recargo in Prunedale California. It has the same battery and inverter setup, but the chargers are BTC CCS + CHAdeMO pedestals and charger cabinets.
    [​IMG]

    • Informative x 4
  16. MarcoRP

    MarcoRP @MontrealTesla

    Joined:
    Sep 6, 2017
    Messages:
    4,846
    Location:
    Montréal
    That would’ve been my 2nd guess, but where are the cabinets for the Superchargers? If you look at the photos, the Superchargers are to the right of the cabinets, whilst there are no signs for the Recargo chargers (if there will be any). I just contacted one of the reps at PlugShare who could probably give me an answer of whether this is a Recargo install or not (PlugShare was created by Recargo).

  17. miimura

    miimura Well-Known Member

    Joined:
    Aug 21, 2013
    Messages:
    5,971
    Location:
    Los Altos, CA
    At the Santa Rosa Supercharger site, the Supercharger cabinets will use the conduits circled below. I believe that layout is for all 10 cabinets.

    Santa Rosa Supercharger Site.jpg

    Recargo has nothing to do with the Santa Rosa Supercharger site. I was just using the Prunedale site photo as an example of a similar PowerPack installation.

    At the Prunedale Recargo site, the BTC charger cabinets are lined up behind the pedestals. Recargo won a grant to establish a charging network along several California highway corridors. One of their corridors is US-101 between Salinas and Santa Maria. Another is US-101 from Healdsburg to the Oregon border. The Prunedale site is a prototype for those and was funded by the Monterey Bay Air Quality Management District. At that site there is a 200kW BTC charging cabinet dedicated to each pedestal even though the cabinets can split power to multiple pedestals. With the exception of the Livermore Electrify America site, it is probably the most powerful industry standard charging site operational in California today. It opened before the Livermore site too.

    • Informative x 1
  18. Chuq

    Chuq Active Member

    Joined:
    Jan 1, 2015
    Messages:
    3,116
    Location:
    Hobart, Tasmania, Australia
    There seems to be some confusion as to whether this will be V3 or not. I notice this reference by @mociaf9 in another thread that points out an image (computer generated - not a photo) provided by Tesla regarding a different site, and it clearly shows different cabinets to the V2 layout. Western Canada Superchargers
    It might be useful in confirming (or otherwise) the V3 status of this site!

    • Like x 1
  19. Owner

    Owner Active Member

    Joined:
    Dec 20, 2012
    Messages:
    1,532
    Location:
    San Francisco Bay Area
    I love this location! I have a good friend who lives in the outskirts of Santa Rosa, and I've stopped at that Whole Foods. Great spot!

  20. byrned

    byrned Member

    Joined:
    Jul 13, 2019
    Messages:
    9
    Location:
    Santa Rosa, CA
    Where exactly is the Santa Rosa supercharger going to be located?
