Wall Connector Cable Organizer

Discussion in 'Model X: Battery & Charging' started by K-MTG, Apr 2, 2016.

  1. K-MTG

    K-MTG Sunshade Captain of TMC

    Joined:
    Oct 24, 2015
    Messages:
    2,383
    Location:
    Irvine, CA
    Though I do not have a VIN, I am "suppose" to take delivery of my Model X 90D in mid-April. My Wall Connector took two days to install and just finished. I really can't test it yet to make sure it works.

    My Wall Connector is placed between both garages but unfortunately I do not have enough room. Any recommendations, the hook can't hold the charging wand due to the stress of the cable turns. Would appreciate any advice? I got some hooks from Home Depot but need assistance on where I should hook the cable.

    Thanks


    Attached Files:

  2. Aljohn

    Aljohn Member

    Joined:
    Oct 17, 2014
    Messages:
    548
    Location:
    Georgia
    The Wall Connector (HPWC) is in the test mode until you reset to regular. If it passed the Test, you should be good. That is where I am. It checks the voltage and ground return to the panel.

    On the cable hanger,, do you have enough room to place the hanger below the wall connector. The cable should be able to be "looped" over the connector a couple of times, but try to keep it off the floor -- avoid chaffing. Also, some have attached a hanger above with a spring to hold the cable.

  3. K-MTG

    K-MTG Sunshade Captain of TMC

    Joined:
    Oct 24, 2015
    Messages:
    2,383
    Location:
    Irvine, CA
    The WC is about 46 inches from the ground and I have about 17 inches of width between the garages

  4. Aljohn

    Aljohn Member

    Joined:
    Oct 17, 2014
    Messages:
    548
    Location:
    Georgia
    @K-MTG, Sounds like you may have enough room for the Hanger below the wall charger. Just make sure to place the hanger on a wall stud, not in dry wall since the charge cable is heavy. Check this post to see how some "looped" the Cable over the hanger several times. Charger Home Installation Also, if the HPWC is firmly attached to a Stud, you can use it as a hanger as well and just use the small hanger as a holder for the handle.

  5. K-MTG

    K-MTG Sunshade Captain of TMC

    Joined:
    Oct 24, 2015
    Messages:
    2,383
    Location:
    Irvine, CA
    Just organized the setup, installed two additional wire hooks and moved the wand holder higher.

    However, I am concerned about the build quality, in less than 24 hours I already got a ding and scratch on the charging wand.


    Attached Files:

  6. brucet999

    brucet999 Active Member

    Joined:
    Mar 12, 2015
    Messages:
    1,302
    Location:
    Huntington Beach, CA
    Get ahold of (maybe ask your electrician) an old wire/cable spool. Cut the rim back on two sides and mount it to the wall. Your cable can then be wrapped on the spool's gentle curved center with the top part of the rim still in place to prevent its falling off. Like a garden hose rack, but more compact.

    Or if you are handy with tools, you can make one like I did:

    See Easy homemade UMC cable holder for more pics and "how to".

    [​IMG]

    • Like x 1
  7. Aljohn

    Aljohn Member

    Joined:
    Oct 17, 2014
    Messages:
    548
    Location:
    Georgia
  8. aesculus

    aesculus Still Trying to Figure this All Out

    Joined:
    May 31, 2015
    Messages:
    1,959
    Location:
    Northern California
    I am in the exact same situation. Between the garage doors is 19" but will be tight for the coiled cable. Plus I have a 12" block wall at the bottom I don't want the cable hitting.

    I have to install my sub panel above and a 14-50 outlet at the bottom until the HPWC's become available again.

  9. Branzo90D

    Branzo90D Salt and Pepper

    Joined:
    Oct 13, 2015
    Messages:
    105
    Location:
    NorCal
  10. brucet999

    brucet999 Active Member

    Joined:
    Mar 12, 2015
    Messages:
    1,302
    Location:
    Huntington Beach, CA
    • Funny x 1
  11. brucet999

    brucet999 Active Member

    Joined:
    Mar 12, 2015
    Messages:
    1,302
    Location:
    Huntington Beach, CA
    #11 brucet999, Apr 4, 2016
    Last edited: Apr 4, 2016
    The backboard of my cable hanger (post #6 above) is only 12" wide and the central drum only 8" diameter, so would fit easily between your doors. I too have a 240V outlet near the floor with my UMC cable draped over the rack and then coiled around.

  12. Branzo90D

    Branzo90D Salt and Pepper

    Joined:
    Oct 13, 2015
    Messages:
    105
    Location:
    NorCal

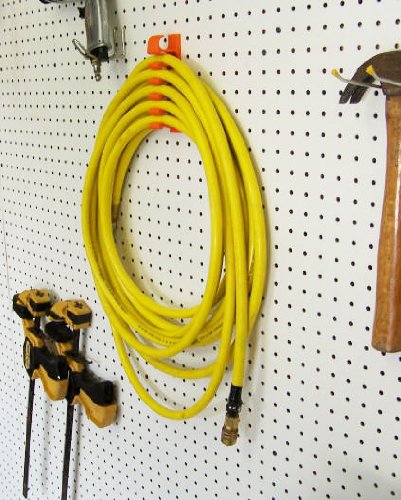

    Heh. Well, not sure, but the cable sure does fit nicely into the pneumatic hose rack. ;)

  13. pvogel

    pvogel Member

    Joined:
    Jun 23, 2015
    Messages:
    906
    Location:
    Santa Clara, CA
    I think only the UMC cabLe fits those pneumatic hose racks, the HPWC cable is bigger
